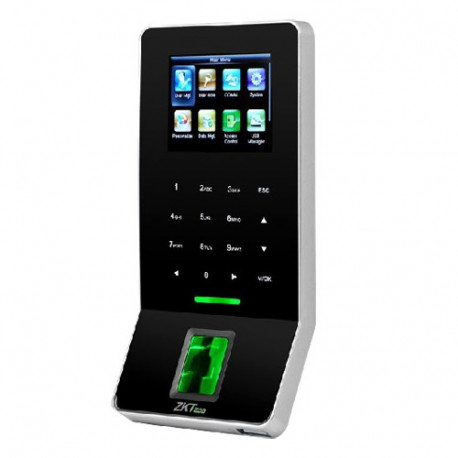

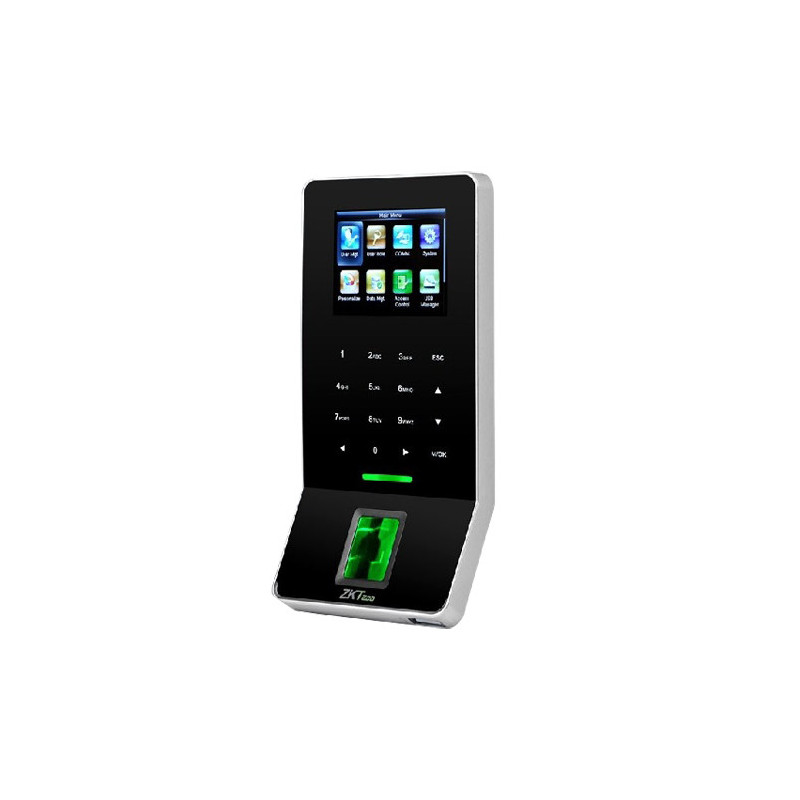

ZK-F22 Agrandir l'image

ZK-F22

ZK-F22

Neuf

  • Contrôle d'Accès et Présence
  • Capteur d'empreintes SilkID, clavier et carte EM
  • 3.000 enregistrements / 80.000 registres
  • TCP/IP, USB, RS485, Wiegand et Relay
  • Apte pour intérieur
  • Software ZKAccess 3.5 | ZkTimeNet 3.0
  • ZKTeco
  • Standalone biometric reader for Access Control and Time and Attendance
  • Identification by RF EM card, fingerprint, passcode and/or combinations
  • SilkID Optical Sensor
  • Keypad and 2.4" LCD screen
  • Capacity of 3.000 fingerprints, 5.000 cards and 30.000 records
  • TCP/IP Communication, WiFi, RS485, USB and Wiegand 26
  • Integrated controller (door sensor, push button, door bell, auxiliary input and relay)
  • Control of schedules, shifts and cycles
  • Anti-passback function
  • Compatible with ZKBioAccess IVS software for access control management
BrandZKTeco
ModelF22
Hardware CPULinux OS
SensorZK BioID Optical Sensor
Sensor resolution500DPI
Activation sensorInfrared auto-activation
AlgorithmZK Finger VX10.0
Read time< 1 sec
CapacityUp to 3.000 fingerprints and 5.000 EM RFID cards ((125 kHz)
Records30.000 registers
Identification modesFingerprint, PIN and combinations
Screen2.4" Colour TFT resistive touchscreen
CommunicationTCP/IP, RS485, RS232 and USB
FunctionsAutomatic status change, Anti-passback, Programmable buzzer
OutputsWiegand OUT, Relay, Alarm, Buzzer, Auxiliary for connections
InputsWiegand IN, Door sensor, Push to exit
SoftwareZKBioAccess IVS
PowerDC 12 V / 3 A max.
Degree of protectionValid for interior
Temp. operation0º C ~ +45º C
Dimensions78 (W) x 158 (H) x 19 (D) mm
Weight600 g
