Agrandir l'image

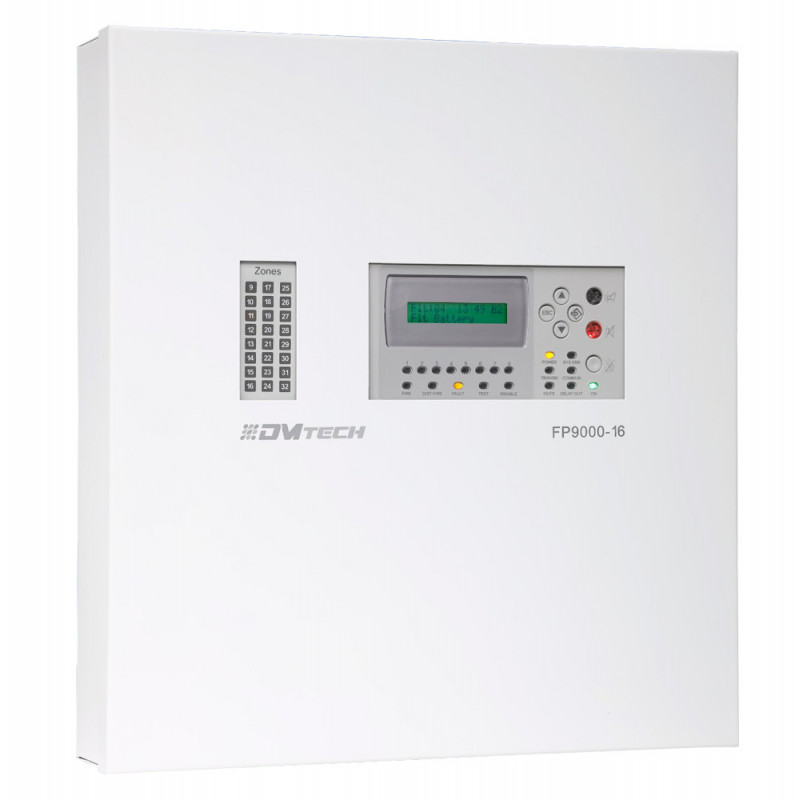

DMT-FP9000-16-IT
DMT-FP9000-16-IT
Neuf
- Conventional central 16 areas with LCD screen
- 2 Siren output
- 2 alarm and fault outputs and 6 configurable relay outputs
- Repeater output
- Up to 30 detectors per zone
- End-of-line resistance auto detection
- DMTECH
- Centrale incendie conventionnelle 16 zones
- Certifié EN54-2 et EN54-4
- 2 sorties indépendantes de sirène
- 2 sorties auxiliaires d'alarme et erreur
- 6 sorties relais configurables
- Sortie individuelle pour répéteurs
- Capacité pour 2 batteries de 12V
- 4 niveaux d'accès (3 d'utilisateur et 1 d'usine)
- Écran LCD pour une programmation avancée via le menu
| Alimentation primaire | Source de commutation 187-252V AC 50-60 Hz 65W max. |
| Alimentation Secondaire | 2 batteries 12VDC (jusqu'à 18 Ah). Garantit une durée minimale de 72 heures. |
| Langues disponibles | Espagnol, anglais, portugais, italien, français et allemand. |
| Nombre de Zones | 16 zones, jusqu'à 30 detecteurs par zone. |
| Sorties sirène | 2 Sorties sirène 24VDC. Sorties de collecteur ouvert indépendant et contrôlées |
| Sorties relais | 8 Sorties de relais: 1 Sortie d'alarme, 1 sortie de défaut et 6 sorties relais configurables. Toutes supportent 30VDC 3Amax. |
| Résistance de fin de ligne | Zones entièrement surveillées par résistance de fin de ligne (4.7K) |
| Tension de Sortie Auxiliaire | 24VDC. Protégé par un fusible électronique réarmable 1.85A |
| Indice de Protection | IP30 |
| Température | -5ºC~+45ºC |
| Matériel et couleur | ABS, Couleur: Blanc |
| Dimensions | 370 x 410 x 80 mm |
| Poids | 2.5Kg |
| Câble recommandé | Câble de feu avec une section minimale de 1.0mm (18AWG). |
