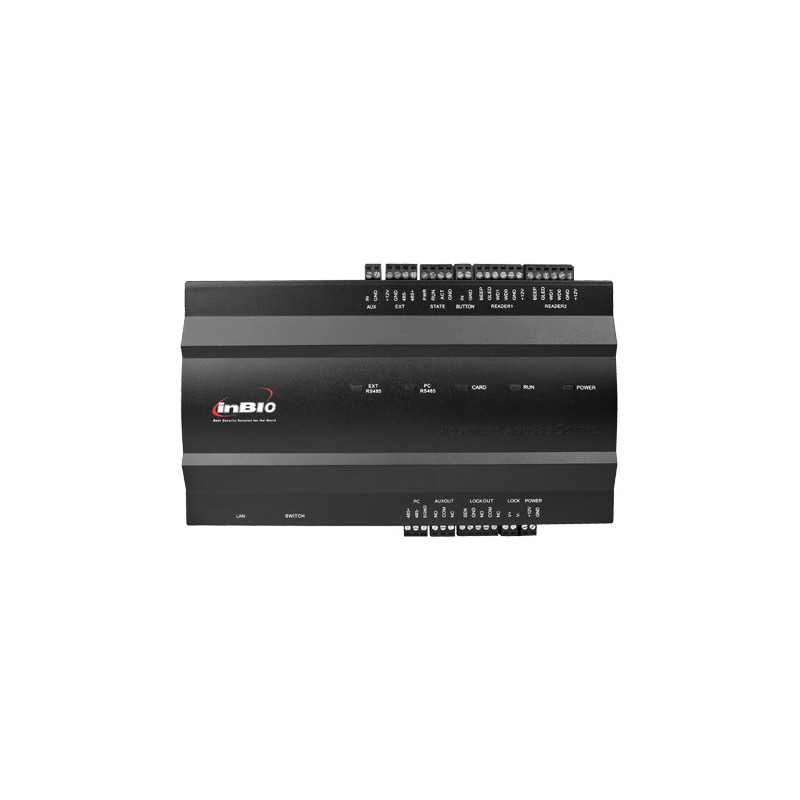

ZK-INBIO160 Agrandir l'image

ZK-INBIO160

ZK-INBIO160

Neuf

  • Contrôleur d'accès biométrique
  • Accès via empreinte, carte ou mot de passe
  • Communication TCP/IP | RS485
  • 4 entrées Wiegand 26
  • Sortie relais pour une porte
  • Logiciel ZK BioAccess IVS
  • ZKTeco
  • Biometric Access Controller
  • Management of 1 door
  • Capacity 3.000 users and 100.000 records
  • Supports up to 2 Wiegand readers and 2 per RS485
  • TCP/IP communication and RS485
  • Input for 1 pushbutton, 1 door sensor and 1 auxiliary input
  • 1 Relay output and 1 auxiliary
  • Relay configuration NO/NC
  • Compatible with ZK BioAccess IVS software for access control management and reporting
BrandZKTeco
ModelinBIO160
Hardware CPU32bit MIPS CPU
CapacityUp to 3.000 fingerprints or 30.000 EM RFID cards
Records100.000 registers
Identification modesFingerprints, Card and/or passwords
Proximity cardEM RFID (125 KHz) / MF (13,56 MHz)
CommunicationTCP/IP | RS485
Baud rate9.600bps, 19.200bps, 38.400bps (Recommended) and 57.600bps
Outputs1 x relay output, 1 x auxiliary output
Inputs2 x Wiegand 26 IN, 1 x door sensor, 1 x opening button, RS485 (up to 2 readers), 1 x auxiliary input
SoftwareZK BioAccess IVS
PowerDC 9.6~14.4 V / 1A max.
Temp. operation0º C ~ +55 C
Dimensions350 (W) x 300 (H) x 90 (D) mm
Weight300 g
