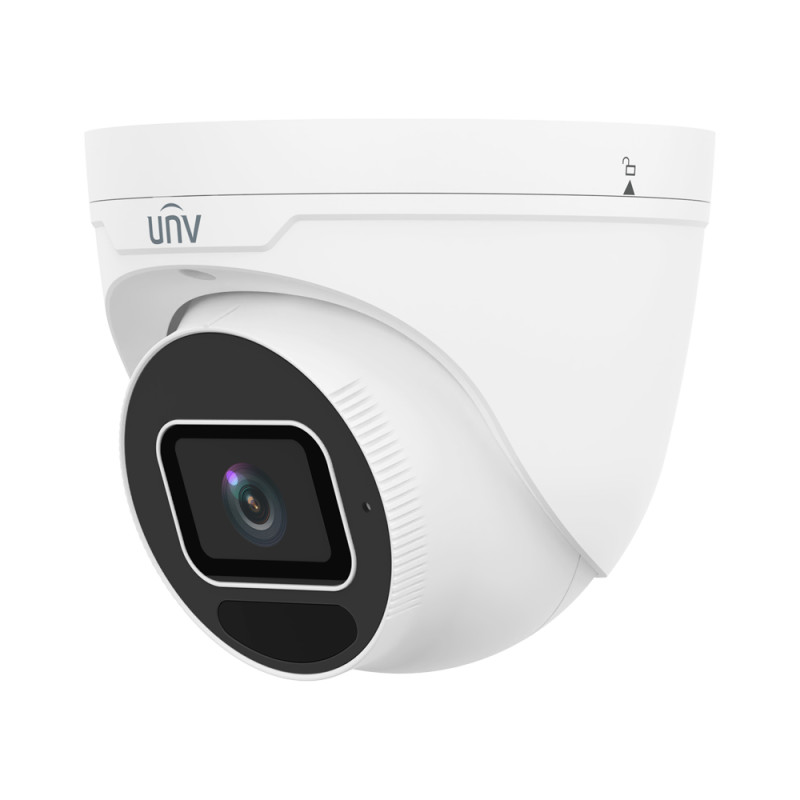

Uniview
UV-UAC-T315-ADZM
UV-UAC-T315-ADZM
5 Mpx2.8 ~ 12 mm40 m
Neuf
- Uniview
- Caméra Turret 4n1 | Gamme Whale
- Résolution 5 Mégapixel
- Objectif 2.8~12 mm | Microphone intégré
- Portée des LED IR 40 m | WDR 120 dB
- IP67
Indisponible
Les bons équipements. Vos tarifs pro.
Les tarifs et la commande sont réservés aux entreprises dont le compte a été validé par MF Protect.
Demander mon compte professionnel ↗Déjà client ? Connectez-vous
Une question sur cette référence ?Contactez-nous ↗
L’essentiel, en détail.
| Poids | 609 g |
| Type | Turret |
| Résolutions | 5 Mpx |
| Couleur | Blanc |
| Technologie | HDTVI, HDCVI, AHD, CVBS |
| Matériau | Métal / Plastique |
| Alimentation | DC 12 V / 4.7 W |
| Degré de protection | Étanche IP67 |
| Protection | IP67 |
| Audio | Microphone intégré |
| Objectif | 2.8 ~ 12 mm |
| Portée infrarouge | 40 m |
| Type d’éclairage | IR |
| Indice de protection IP | IP67 |
| Protection antivandalisme | Non disponible |
| Protection anticorrosion | Non disponible |
| Microphone et haut-parleur | Microphone intégré |
| Entrées et sorties d’alarme | Non disponible |
| Stockage interne | Non disponible |
| WDR | DWDR |
| Réglage sur trois axes | Oui |
| Alimentation par câble coaxial | Non disponible |
| Audio sur câble coaxial | Oui disponible (CVI) |
| Format de caméra | Caméra tube |
| Entrées et sorties audio | Non disponible |
| Zoom optique | Non disponible |
Présentation
- Uniview
- Caméra turret analogique
- 1/2.7" Progressive Scan CMOS
- 5 Mégapixel (2880x1620)
- Objectif 2.8 ~ 12 mm
- 0.005 Lux
- IR Alcance40 m
- Étanche IP67
- WDR 120 dB
- IR CUT
- TVI/AHD/CVI/CVBS
- Microphone intégré
- Métal / Plastique
| Gamme | Uniview |
| Capteur d'image | 1/2.7” Progressive Scan CMOS |
| Résolution maximale | 5MP |
| Taux Main Stream | CVI: 5MP@25fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps TVI: 5MP@20fps 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC |
| Objectif | 2.8 ~ 12 mm |
| Angle de vue (FOV) | Horizontal: 107.8º ~ 36.5º Vertical: 58.5º ~ 20.5º Diagonale: 127º ~ 41.3º |
| Illumination minimale | 0.005 Lux (Couleur) |
| Portée infrarouge | 40 m |
| Améliorations d'image | BLC, HLC, MODE JOUR/NUIT, 2D. DWDR. SMART IR |
| WDR | 120dB |
| Jour / Nuit | Filtre mécanique ICR |
| Inverser l'image (Flip) | Prend en charge la rotation horizontale de 180º et la rotation verticale de 180º |
| Alimentation | DC 12 V / 4.7 W |
| Sortie vidéo | BNC, supporte TVI, AHD, CVI et CVBS |
| Audio | Microphone intégré |
| Matériel | Métal / Plastique |
| Temp. fonctionnement | -30º C ~ 60º C |
| Degré de protection | Étanche IP67 |
| Dimensions | Φ129 x 110 (H) mm |
| Poids | 609 g |
