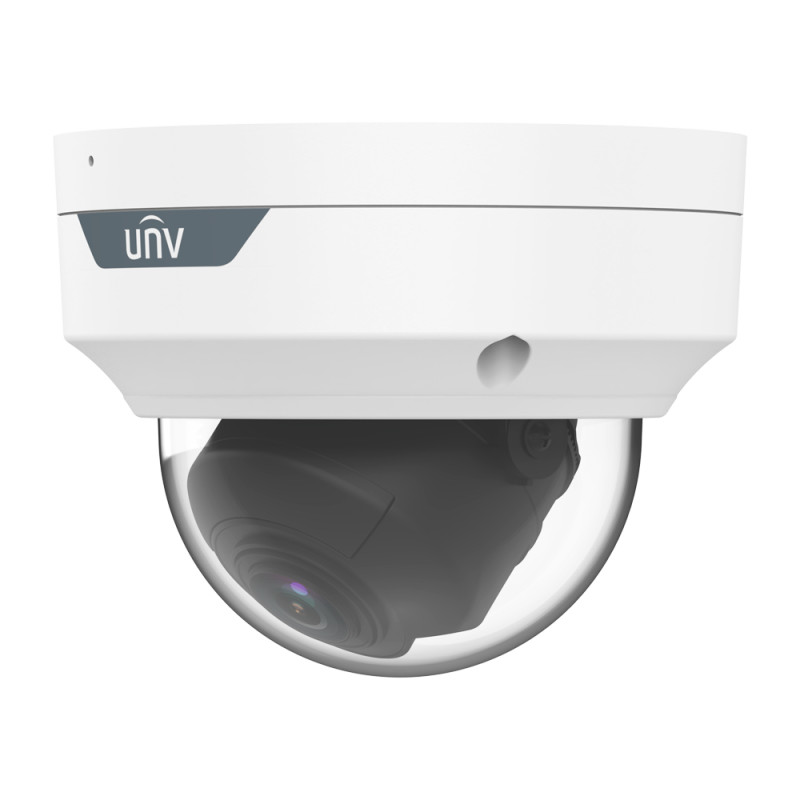

Uniview UV-UAC-D312-AZLM Agrandir l'image
Uniview

UV-UAC-D312-AZLM

UV-UAC-D312-AZLM

2 Mpx2.8 ~ 12 mm40 m

Neuf

  • Uniview
  • Caméra Dôme 4n1 | Gamme Whale
  • Résolution 2 Mégapixel
  • Objectif 2.8~12 mm | Microphone intégré
  • IR LEDs Portée 30 m
  • IP67 | IK10

En stock

Les bons équipements. Vos tarifs pro.

Les tarifs et la commande sont réservés aux entreprises dont le compte a été validé par MF Protect.

Demander mon compte professionnel ↗
Une question sur cette référence ?Contactez-nous ↗

L’essentiel, en détail.

Poids530 g
TypeDôme fixe
Résolutions2 Mpx
CouleurBlanc
TechnologieHDTVI, HDCVI, AHD, CVBS
MatériauMétal / Plastique
AlimentationDC 12 V / 2.78 W
Degré de protectionÉtanche IP67 Anti-vandalisme IK10
ProtectionIP67
AudioMicrophone intégré
Objectif2.8 ~ 12 mm
Portée infrarouge40 m
Type d’éclairageIR
Indice de protection IPIP67
Protection antivandalismeNon disponible
Protection anticorrosionNon disponible
Microphone et haut-parleurMicrophone intégré
Entrées et sorties d’alarmeNon disponible
Stockage interneNon disponible
WDRDWDR
Réglage sur trois axesOui
Alimentation par câble coaxialNon disponible
Audio sur câble coaxialOui disponible (CVI)
Format de caméraCaméra tube
Entrées et sorties audioNon disponible
Zoom optiqueNon disponible

Présentation

  • Uniview
  • Caméra Dôme analogique
  • 1/3" Progressive Scan CMOS
  • 2 Mégapixel (1920x1080)
  • Objectif 2.8 ~ 12 mm
  • 0.005 Lux
  • IR Portée 30 m
  • Étanche IP67
  • Anti-vandalisme IK10
  • IR CUT
  • TVI/AHD/CVI/CVBS
  • Microphone intégré
  • Métal / Plastique
GammeUniview
Capteur d'image1/3” Progressive Scan CMOS
Résolution maximale2MP
Taux Main StreamCVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Objectif2.8 ~ 12 mm
Angle de vue (FOV)Horizontal:
91.3º ~ 31.3º
Vertical:
52.2º ~ 18.5º
Diagonale:
106.8º ~ 35.9º
Illumination minimale0.005 Lux (Couleur)
Portée infrarouge30 m
Améliorations d'imageBLC, HLC, DWDR, DAY/NIGHT MODE, 2D. DWDR. SMART IR
Jour / NuitFiltre mécanique ICR
Inverser l'image (Flip)Prend en charge la rotation horizontale de 180º et la rotation verticale de 180º
AlimentationDC 12 V / 2.78 W
Sortie vidéoBNC, supporte TVI, AHD, CVI et CVBS
AudioMicrophone intégré
MatérielMétal / Plastique
Temp. fonctionnement-30º C ~ 60º C
Degré de protectionÉtanche IP67
Anti-vandalisme IK10
DimensionsΦ128 x 100 (H) mm
Poids530 g
