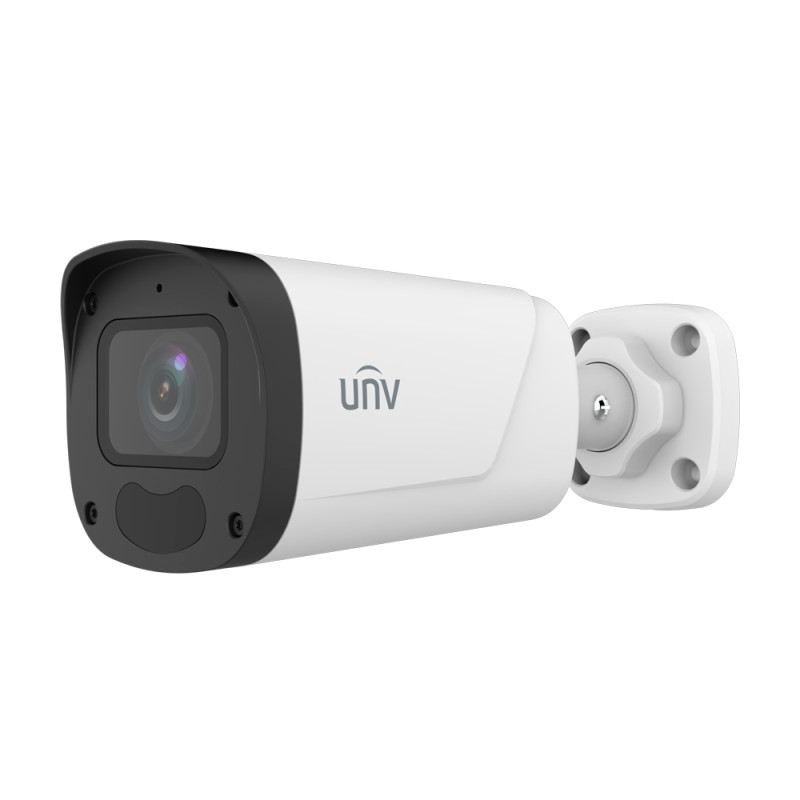

Uniview UV-UAC-B315-ADZLM Agrandir l'image
Uniview

UV-UAC-B315-ADZLM

UV-UAC-B315-ADZLM

5 Mpx2.8 ~ 12 mm40 m

Neuf

  • Uniview
  • Caméra Bullet 4n1 | Gamme Whale
  • Résolution 5 Mégapixel
  • Objectif 2.8~12 mm | Microphone intégré
  • Portée des LED IR 50 m | WDR 120 dB
  • Étanche IP67

Indisponible

Les bons équipements. Vos tarifs pro.

Les tarifs et la commande sont réservés aux entreprises dont le compte a été validé par MF Protect.

Demander mon compte professionnel ↗
Une question sur cette référence ?Contactez-nous ↗

L’essentiel, en détail.

Poids332 g
TypeBullet
Résolutions5 Mpx
CouleurBlanc
TechnologieHDTVI, HDCVI, AHD, CVBS
MatériauMétal / Plastique
AlimentationDC 12 V / 4.7 W
Degré de protectionÉtanche IP67
ProtectionIP67
AudioMicrophone intégré
Objectif2.8 ~ 12 mm
Portée infrarouge40 m
Type d’éclairageIR
Indice de protection IPIP67
Protection antivandalismeNon disponible
Protection anticorrosionNon disponible
Microphone et haut-parleurMicrophone intégré
Entrées et sorties d’alarmeNon disponible
Stockage interneNon disponible
WDRDWDR
Réglage sur trois axesOui
Alimentation par câble coaxialNon disponible
Audio sur câble coaxialOui disponible (CVI)
Format de caméraCaméra tube
Entrées et sorties audioNon disponible
Zoom optiqueNon disponible

Présentation

  • Uniview
  • Caméra Bullet analogique
  • 1/2.7" Progressive Scan CMOS
  • 5 Mégapixel (2880x1620)
  • Objectif 2.8 ~ 12 mm
  • 0.005 Lux
  • IR Portée 50 m
  • Étanche IP67
  • WDR 120 dB
  • IR CUT
  • TVI/AHD/CVI/CVBS
  • Microphone intégré
  • Métal / Plastique
GammeUniview
Capteur d'image1/2.7” Progressive Scan CMOS
Résolution maximale5MP
Taux Main StreamCVI: 5MP@25fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
TVI: 5MP@20fps 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC
Objectif2.8 ~ 12 mm
Angle de vue (FOV)Horizontal:
107.8º ~ 36.5º
Vertical:
58.5º ~ 20.5º
Diagonale:
127º ~ 41.3º
Illumination minimale0.005 Lux (Couleur)
Portée infrarouge50 m
Améliorations d'imageBLC, HLC, MODE JOUR/NUIT, 2D. DWDR. SMART IR
WDR120dB
Jour / NuitFiltre mécanique ICR
Inverser l'image (Flip)Prend en charge la rotation horizontale de 180º et la rotation verticale de 180º
AlimentationDC 12 V / 4.7 W
Sortie vidéoBNC, supporte TVI, AHD, CVI et CVBS
AudioMicrophone intégré
MatérielMétal / Plastique
Temp. fonctionnement-30º C ~ 60º C
Degré de protectionÉtanche IP67
Dimensions198 (Pr) x 74 (L) x 74 (H) mm
Poids332 g
