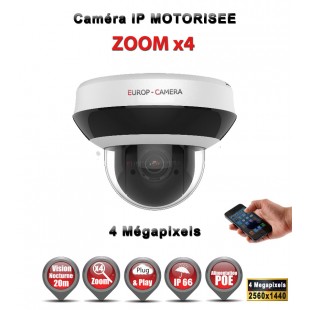

Caméra motorisée PTZ Mini Dôme 355° IP POE 4 MegaPixels ONVIF HIKVISION ZOOM X4 IR 20M

Agrandir

Reference: MF-N2404IDE3

> Caméra IP motorisée PTZ

> Résolution 4MP (2560x1440)

> Infrarouge 20m

> Compression H265+ / H264+

> Protocole ONVIF / HIKVISION

> Zoom optique x4 : 2.8mm~12mm

> Vitesse de rotation 100°/s

> Etanche norme IP66

> Fonction contre-jour WDR 120dB

> Analyse intelligente, détection visage

> Alimentation 12V / POE

> Supporte MicroSD 256Gb

Camera
Image Sensor:		1/3" Progressive Scan CMOS
Effective Pixels:		2560(H)×1440(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
HLC:		Support
WDR:		120dB
Shutter Time:		50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Mask:		24 programmable privacy masks
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		2.8 mm to 12 mm, 4× optical zoom
Zoom Speed:		Approx. 2 s (optical lens, wide-tele)
Field of View:		Horizontal field of view: 100° to 33° (Wide-Tele) Vertical field of view: 53° to 18° (Wide-Tele) Diagonal field of view: 119° to 37.5° (Wide-Tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.6 to F2.7

Pan & Tilt
Pan Range:		0° to 330°
Pan Speed:		Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s
Tilt Range:		Tilt: 0°~90°
Tilt Speed:		Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Power-off Memory:		Support

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Infrared
IR Distance:		20m

Network
Max.Image Resolution:		2560 × 1440
Main Stream:		50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		support two fixed areas
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Hik-Connect:		Support

General
Power Supply:		12 VDC & PoE
Power Consumption:		Max.: 12 W (Max. 3.9 W for IR)
Working Temperature/Humidity:		Working Temperature: -20°C to 60°C (-4°F to 140°F) Working Humidity: ≤ 90%
Protection Level:		IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Material:		Aluminum alloy, PC, PC+ABS
Dimensions:		Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Weight (approx.):		Approx. 0.53 kg (1.17 lb)
